| Dimensions | 562W x 470D x 880H (mm) |
| Weight | 150kg |
| ULEB Approved | No |
| Clean Air Approved | Yes |
| Firebox Dimensions | 420W x 300D x 325H(mm) |
| Firebox Thickness | 6mm Steel |
| External Air Supply | Yes |
| Model Number | SG010200002 |
| Warranty | 10 Year firebox warranty |

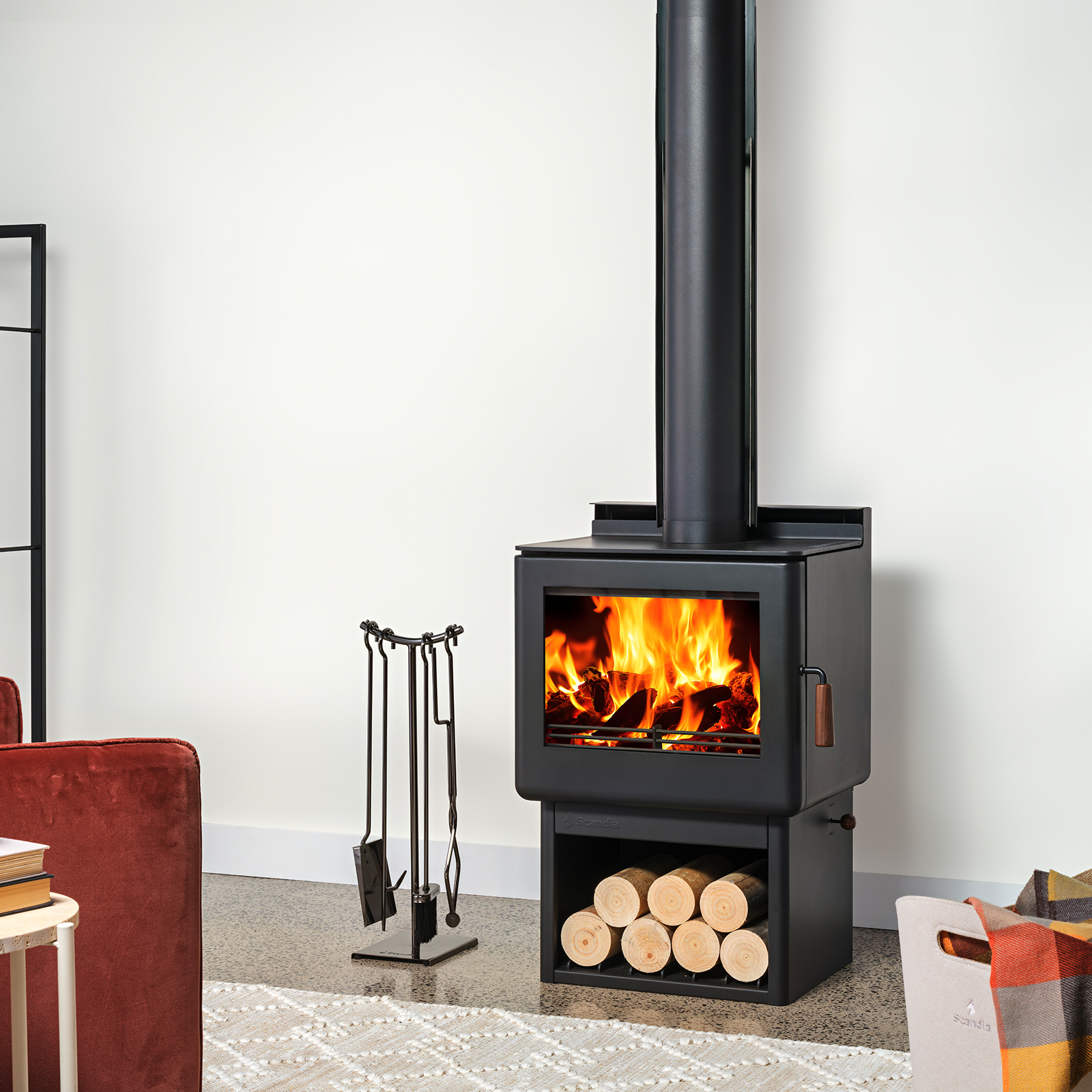

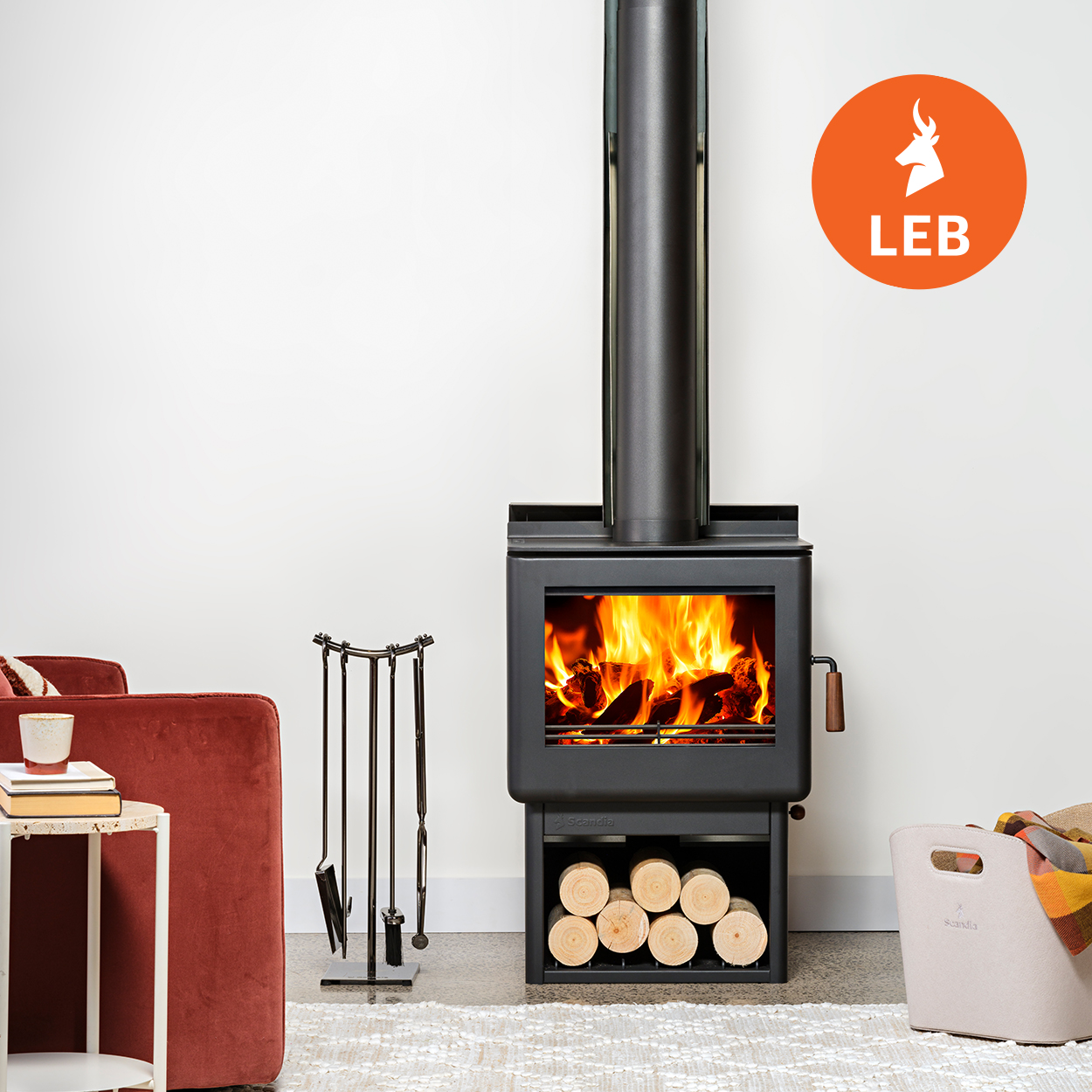

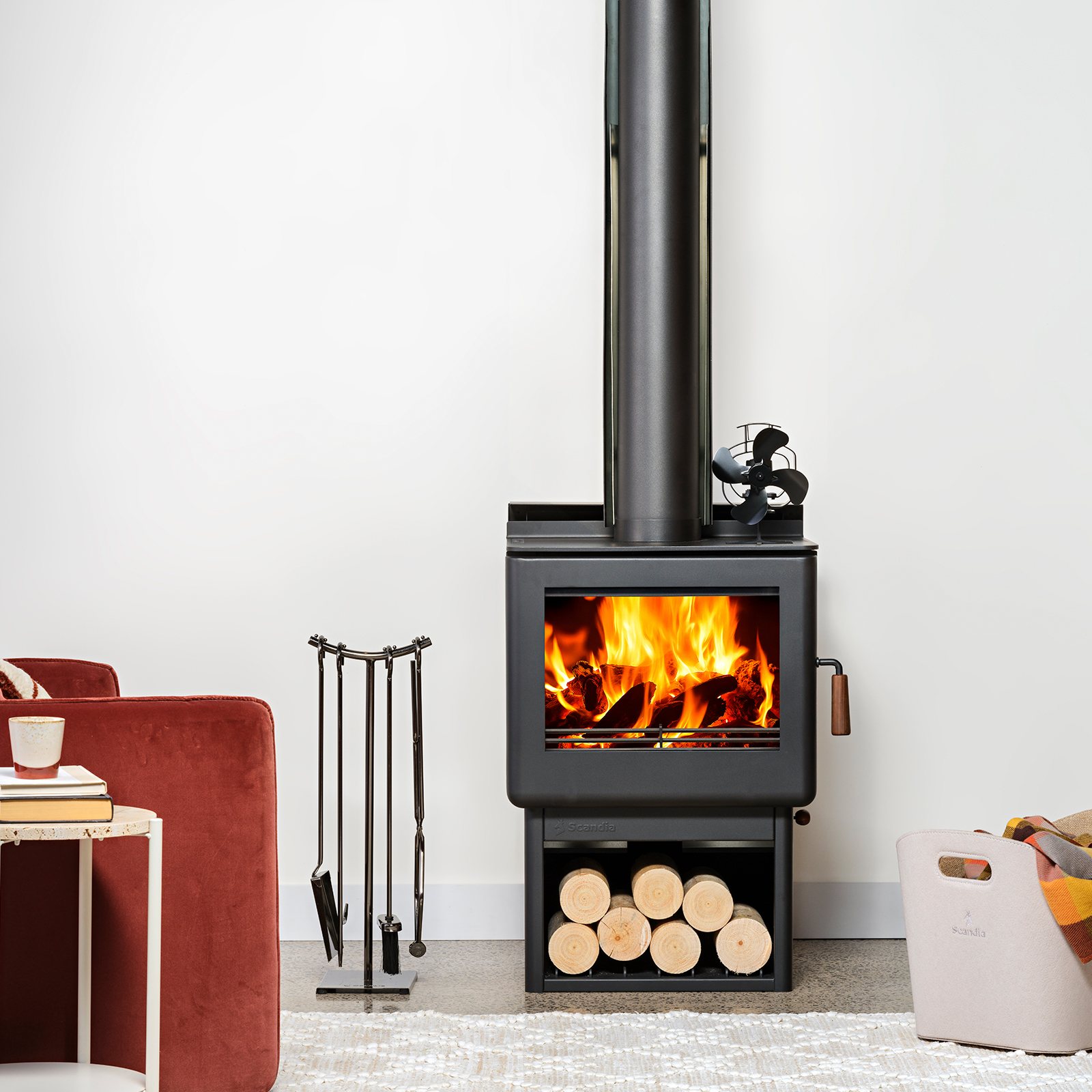

Cascade LEB
| 200m2 | 9.1kW | 8mm | 41L |
| HEATS A 3-4 BEDROOM HOME |
AVG. PEAK KW OUTPUT |
STEEL COOKTOP | FIREBOX CAPACITY |
Classic wood fire that combines form & function.
Boasting a 9.1kW avg. peak kW output, this classic wood fire is an ideal choice for cozy, long-lasting warmth.
KEY BENEFITS
-
STAY WARMER FOR LONGER

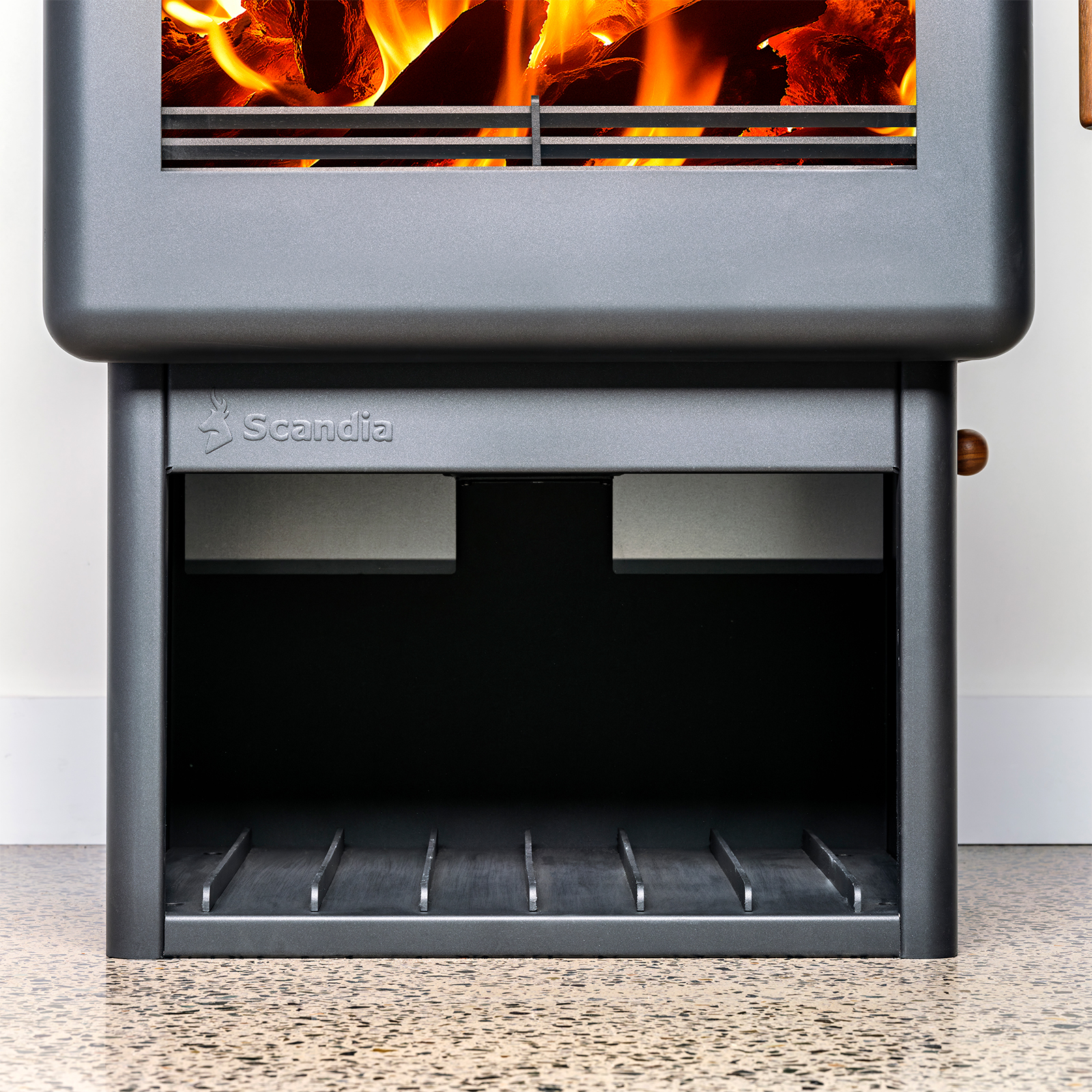

A large firebox with 5 piece log capacity, keeps your fire burning longer with fewer refuels. In-built wood storage makes wood easily accessible and keeps wood dry, ready for cleaner, hotter burning.
-
FUNCTIONAL DESIGN EXTRAS

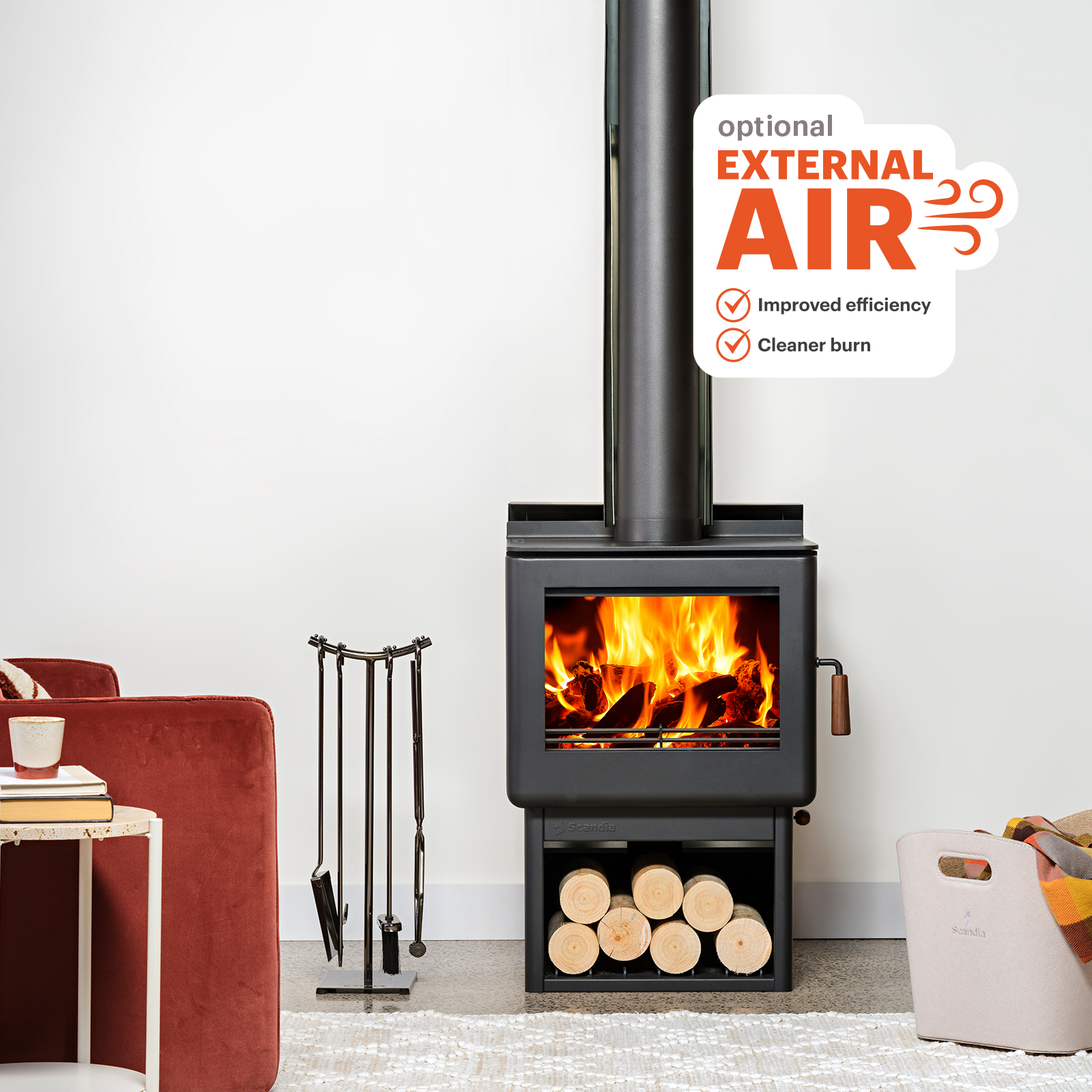

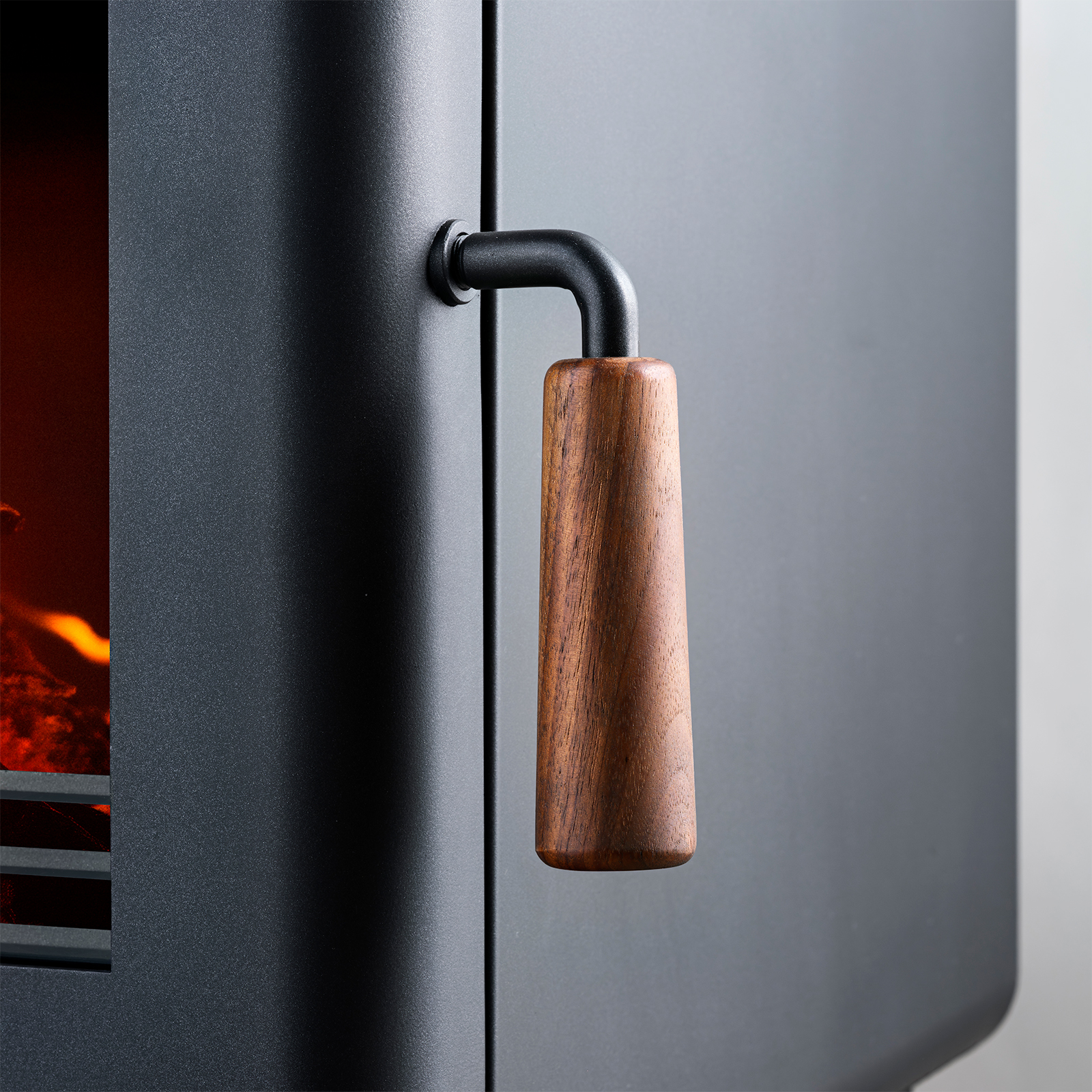

External air supply inlet for more efficient burning and reduced heat loss, log retainer for safe refueling, 8mm steel cook-top, and stylish wooden handles come together for a seamless wood fire experience.
TECHNICAL DETAILS

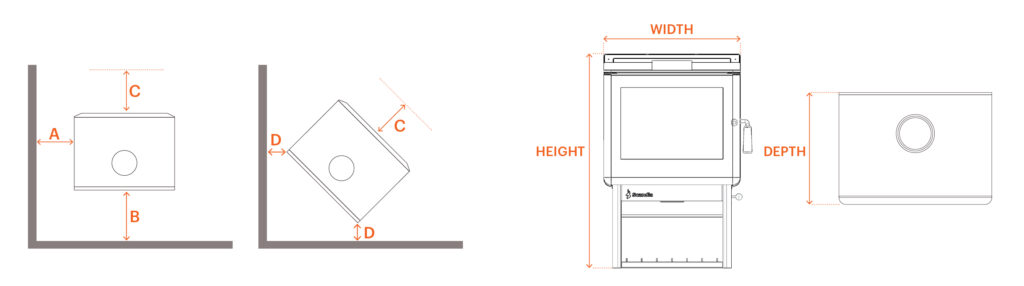

CLEARANCES
| Clearance to Combustibles (mm) | |||||
|---|---|---|---|---|---|
| A | B | C | D | ||
| 450 | 100* | 300 | 275 | ||
| Unit Dimensions (mm) | |||||
|---|---|---|---|---|---|
| WIDTH | HEIGHT | DEPTH | WEIGHT | ||
| 562 | 880 | 470 | 150kg | ||
| Firebox Dimensions (mm) | |||||||
|---|---|---|---|---|---|---|---|
| WIDTH | HEIGHT | DEPTH | |||||
| 420 | 325 | 300 | |||||
*Must use approved Scandia flue kit with heatshield to be compliant with this clearance value.
SCANDIA VIDEO
WHAT YOU WILL NEED
ITEMS TO COMPLETE YOUR INSTALL
- Scandia Heatmax Flue Kit: SG020100019
- Metal or Tile roof flashing is required – ask your bunnings staff member for assistance.
- Floor protection
- Scandia Firetool set: 0743378
- Scandia wood storage
FIND AN INSTALLER
Find a certified installer here: https://qr1.be/84WQIRÂ
Make sure your wood fire installation is completed by a qualified person whose work conforms with local council regulations, Australian/New Zealand standards (AS/NZS 2918:2018) & manufacturers recommendations. Refer to Scandia’s online user manuals for most up to date clearance, hearth and technical information for your model.
For a hassle-free warranty experience, we recommend registering your Scandia wood fire within 14 days of installation.
Please note: All wood fires must be installed by a qualified person whose work conforms with local council regulations, Australian/New Zealand standards (AS/NZS 2918:2018) & manufacturers recommendations.
