| Dimensions | 650W x 568D x 826H |
| Weight | 229kg |
| Hot Water | Optional hot water jacket available |
| Firebox Dimensions | 430W x 330D x 380H (mm) |
| Firebox Thickness | 5mm Steel |
| Oven Volume | 48L |
| Oven Dimensions | 440W x 365D x 300H (mm) |
| Model Number | SCX501 |
| Warranty | 10 Year firebox warranty |
Heat & Cook
| 200m2 | HOT WATER* |
6mm | 49L |
| HEATS A 3-4 BEDROOM HOME |
*OPTIONAL HOT WATER JACKET |
STEEL COOKTOP | FIREBOX CAPACITY |
Your ultimate off-the-grid heating & cooking solution!
Combining robust home heating with the versatility of a fully equipped cooking system, and the capacity for an optional wet back (Scandia Hot Water Jacket).
KEY BENEFITS
-
BAKING & STOVE-TOP COOKING

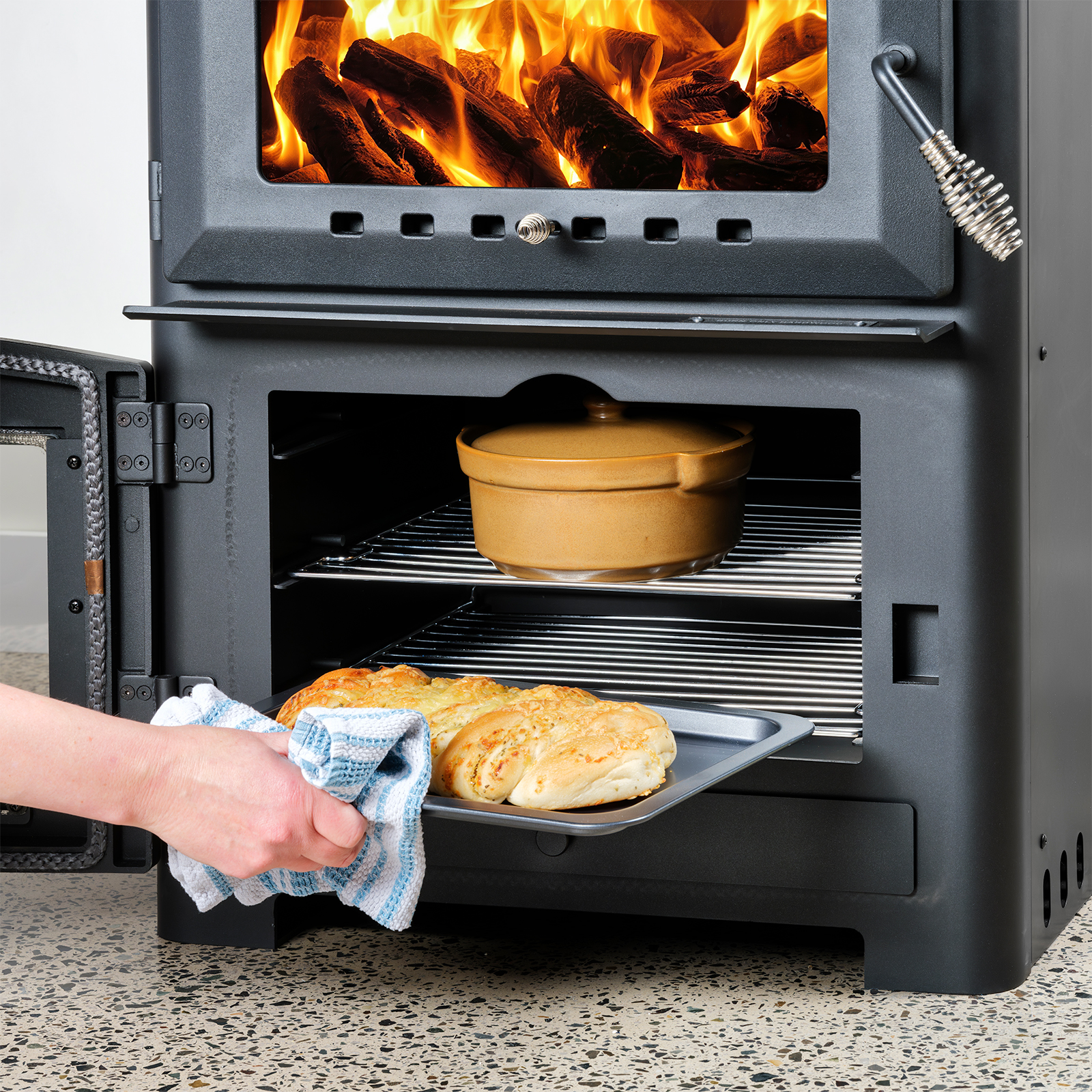

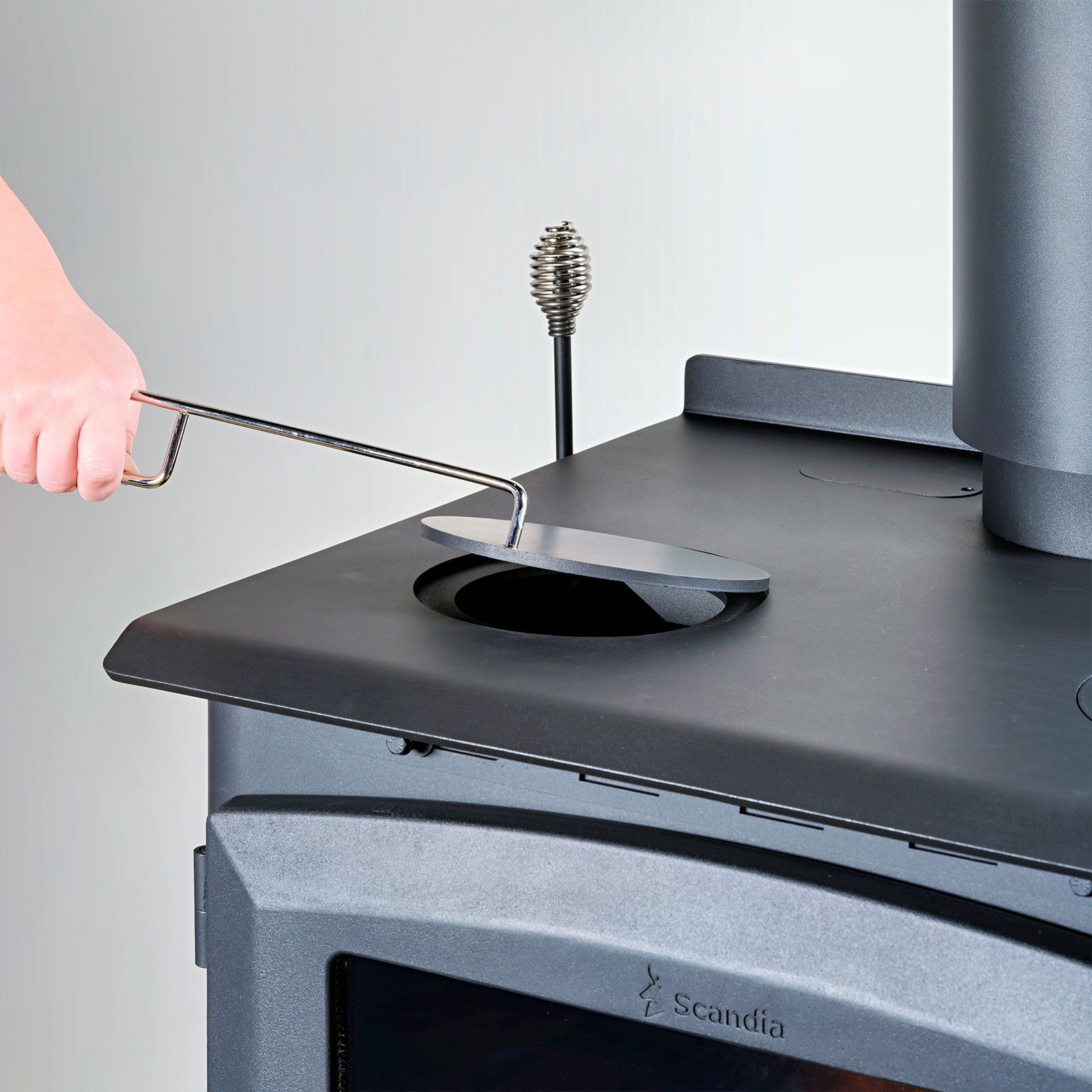

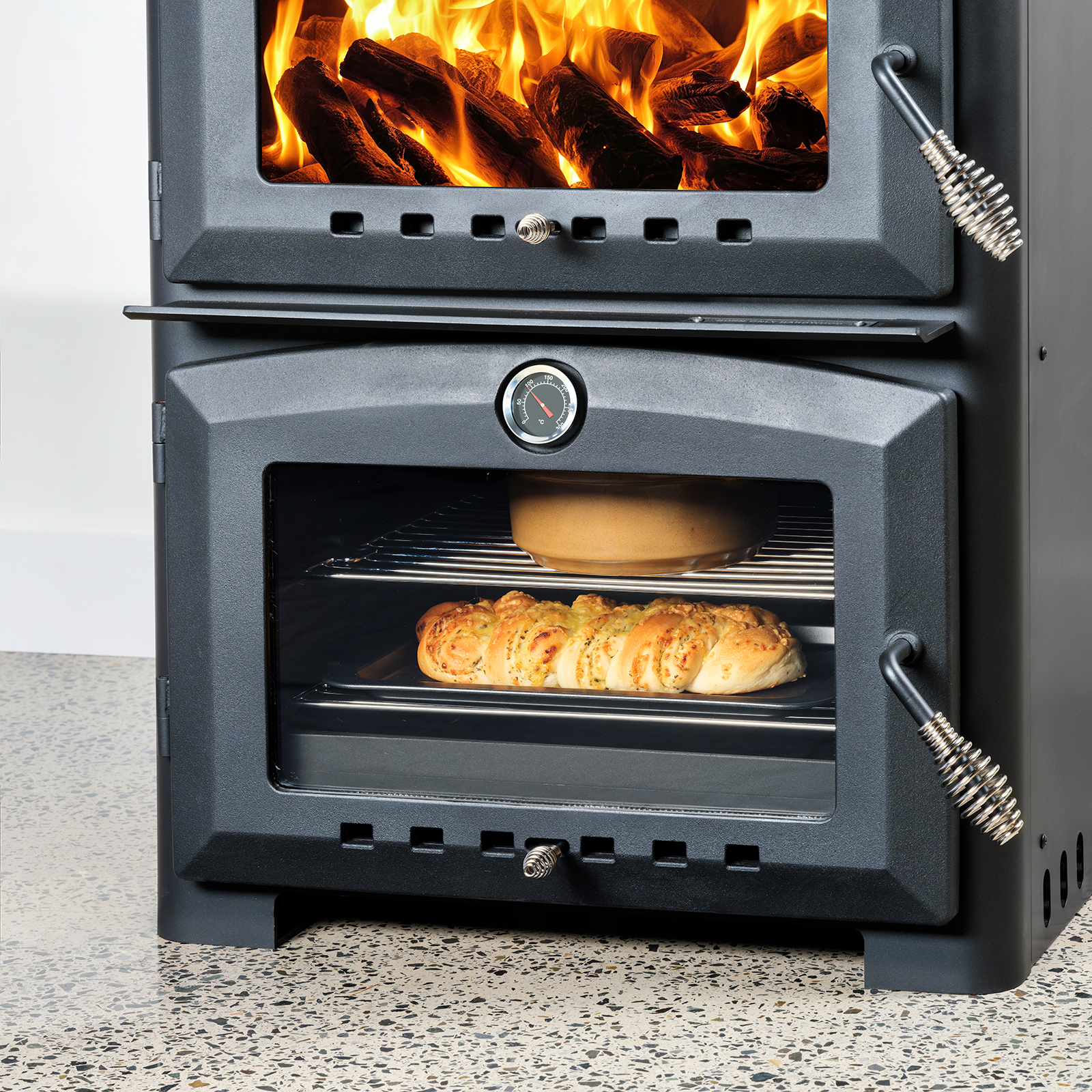

The Heat & Cook features a temperature-controlled oven and extra-large cooktop with two removable trivets for flexible cooking.
-
PERFECT FOR OFF-THE-GRID LIVING
Heat your home, heat your water* and cook your food; all with no electrical installation giving you piece of mind during power outages, and making this wood fire ideal for off-grid-living.
TECHNICAL DETAILS
CLEARANCES
| Clearances to Combustible Surfaces (mm) | |||||
|---|---|---|---|---|---|
| A | B | C | D | ||
| 400 | 170* | 255 | 200 | ||
| Unit Size (mm) | |||||
|---|---|---|---|---|---|
| WIDTH | HEIGHT | DEPTH | WEIGHT | ||
| 650 | 826 | 568 | 229kg | ||
| Firebox Dimensions (mm) | |||||
|---|---|---|---|---|---|
| WIDTH | HEIGHT | DEPTH | |||
| 430 | 380 | 330 | |||
*Must use approved Scandia flue kit with heatshield to be compliant with this clearance value.
